Announcing The Emdyne Gasmeter MK 2019


Click Here For Detailed Description of New Version
New Gasmeter Version: MK 2019

"Announcing A New Active Accomodation Gas Volume Measurement Technique for
Science and Industry"

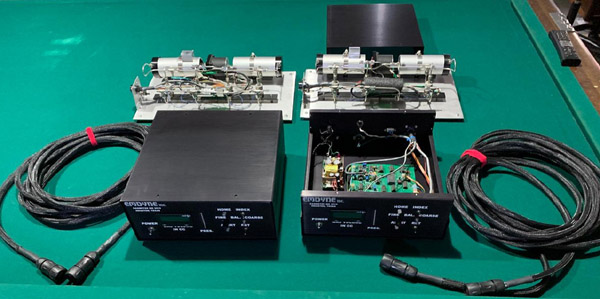

New Gasmeter Version: MK 2019 At the request of a customer who needed to meet Class 1, Division 2 regulations that pertain to operation in a potentially dangerous environment of combustible gases, Emdyne, Inc. has redesigned the standard MK 2015 Gasmeter model. Separating the Control unit from the gas collection/measurement section was the preferred solution to meet the stringent requirements. A new enclosure for the Control section is patterned after the left portion of a standard MK 2015 chassis, reducing the face width from 28 inches down to 12.5 inches allowing more bench space for other lab equipment. This new version, the MK 2019 Gasmeter, retains the same operational specifications listed below in the MK 2015 spec list, while using the new separated configuration. The cable separating the Controller and gas collection sections may be specified by the user up to 50 feet in length (standard length being 20 feet). An aluminum plate supports the mechanical assembly of valves, manifold and motor/cylinder mechanism. Users may mount this assembly within a custom inert gas purged enclosure or leave uncovered depending upon the application. The MK 2019 two-piece Gasmeter is now available on special order - lead time of 60 days. Contact emdyne@att.net with technical questions and for pricing.

Extended length data collection for precise gas volume measurements are routinely needed in science and industry.  Applications may include:

  • Petrochemical core analysis
  • Educational chemistry and engineering departments
  • Gas volume measurement for remoted Pilot Plant applications
  • Medical and pharmaceutical research and development studies
  • Environmental contamination and abatement studies
  • Aerospace/Defense research programs
  • Manufacturing and quality control


    Click Here For Detailed Description of Basic Version

    MODEL MK 2015

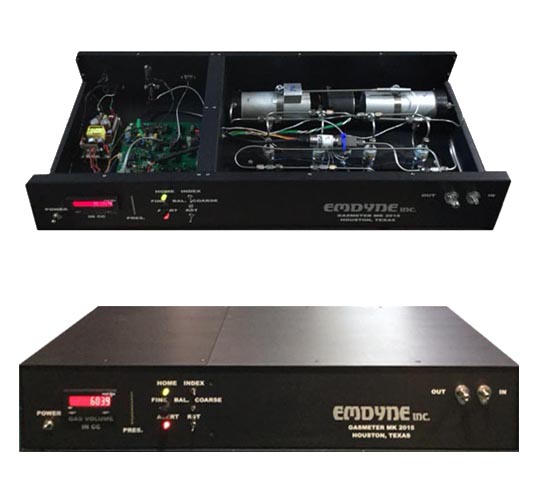

The EMDYNE MK2015 GASMETER measures the volume of gas collected to a precision of 0.1 ml and displays the accumulated total for visual observation.  In addition, it provides thermal control of the collection system for input gases that may need cold trap protection from condensation.  All related data is available via RS-232 computer interface to laboratory data logger computer.

CHASSIS:  28 INCH W X 5 INCH H X 12 INCH D

VOLTAGE REQUIREMENT:  90-240 VAC, 50-60 HZ

HEATER RATING: 75 WATTS WATLOW ELEMENT - INTRINSICALLY SAFE

MATERIALS: SILICONE CONSTRUCTION

CHASSIS: BLACK ANODIZED ALUMINUM, WHITE SILKSCREEN GRAPHICS
CYLINDERS: CLEAR HARD ANODIZED ALUMINUM PRECISION HONED, 2.00 INCH
I.D., 2.25O INCH O.D.

VALVES: CLIPPARD MINIMATIC, 316 SS BODIES, BUNA-N RUBBER SEATS, NICKEL
PLATED BRASS FITTINGS

PISTONS AND ENDCAPS: BLACK HARD ANODIZED ALUMINUM

FITTINGS AND TUBING:  316 STAINLESS

TRANSDUCER:  OMEGA PX309-015GV

TEMPERATURE CONTROLLER:  OMEGA CNI3244-C24, 1/32 SIZE, TEMPERATURE
READOUT AND PROGRAMMING DISPLAY INCLUDES RS-232 PORT

TEMPERATURE TRANSDUCER:  100 OHM RTD MONITORS TEMPERATURE WITHIN COLLECTION CHAMBER - OUTPUT SENT TO 2-PIN REAR PANEL CONNECTOR (SENT TO TEMP CONTROLLER IF HEATER OPTION IS CHOSEN).

COUNTER:  RED LION BRAND 8 DIGIT CUB5 RATE METER WITH RS-232 PORT

CONTROLS:  POWER SWITCH, INDEX SWITCH, RESET TOGGLE SWITCH,
COARSE PRESSURE BALANCE, FINE PRESSURE BALANCE

INDICATORS:  HEATER ACTIVE LED, HOME POSITION LED, OVER-PRESSURE ALERT
LED, BARGRAPH PRESSURE INDICATOR

INPUT AND OUTPUT GAS FITTINGS:  1/8 INCH TUBE FITTINGS, 2 EACH WITH ANTI-ROTATION FLANGES, 316 SS

COMPUTER INTERFACE:  9 PIN D CONNECTOR, FEMALE, RS-232 SERIAL PORT

ACCURACY:  INDEFINITELY REPEATABLE

COLLECTION RATE:  UP TO 30 LITERS PER HOUR @ 0.3 IN H2O PRESSURE
SENSITIVITY AT CONSTANT TEMPERATURE

Pricing and Availability upon request.
